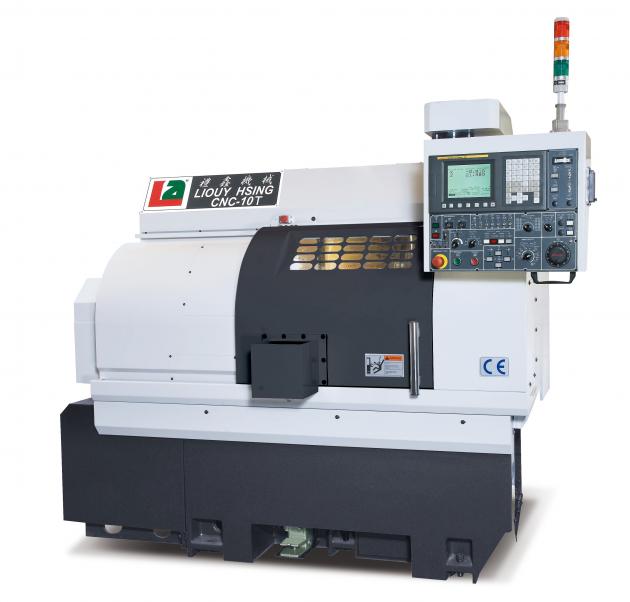

CNC-10T
Specifications
| Capacity | |
| Max. Swing diameter | 400mm |
| Max. turning diameter | 330mm |
| Max. turning length | 280mm |
| Distance between centers | 300mm |
| Travel | |
| X-axis | 165mm |
| Z-axis | 300mm |
| Spindle | |
| Max.Speed | 5000 (Opt:6000)rpm |
| Spindle nose | A2-5 |
| Spindle bearing ID | 90mm |
| Spindle bore | 55mm |
| Bar Capacity | 42mm |
| Turret (Optional) | |
| Type | 8-station (Opt:12-station) |
| OD tool | 20mm |
| ID tool | Ø 32mm |
| Feed Rate | |
| X-axis | 20m/min |
| Z-axis | 24m/min |
| Hydraulic Tailstock (Optional) | |
| Quill diameter | (Opt:75mm) |
| Quill taper | MT#4 |
| Travel | 300mm |
| Quill travel | 80mm |
| Motor | |
| Spindle motor | 15HP (Opt:20HP) |
| Feed drive motor | β is8(X,Z axis) |
| Hydraulic motor | 2HP |
| Coolant pump motor | 1 HP |
| Machine Dimensions | |
| Machine weight | 3200kgs |
| L x W x H | 2100x1000x1600 |
Standard Accessories & Optional Accessories
| Standard Accessories | Optional Accessories |
| CNC controller | FANUC 18T CNC controller |
| 6’’3-jaw hydraulic hollow chuck with hard and soft jaw (each one set) |
10-position turret |
| High pressure cooling system | 12-position turret |
| 8-position turret | |
| Hydraulic tailstock | Parts catcher |
| Automatic lubrication system | Tool presetter |
| Toolbox & Tools | Auto door |
| Chip convey or and bucket | Liquid/oil separator |
| Bar feeder |
